Multiplication: A Better Algorithm

How do we multiply two numbers like \(84 \times 67\)? At the first step we find \(84 \times 7\). This involves a ‘carryover’, or regrouping, i.e., \(84 \times 7 = (4 + 80) \times 7 = 4 \times 7 + 80 \times 7\). So,

• We start with \(4 \times 7 = 28\)
• And put down \(8\)
• Remember that we need to add \(2\) to the next product
• Find \(80 \times 7\), or rather \(8 \times 7 = 56\)
• And add \(2\) to this, i.e., \(56 + 2 = 58\)
• Complete the product \(84 \times 7 = 588\)

And this is just step 1 (Figure 1)!

Note the complexity! When we add, we deal with only one operation and all digits are added. Here on the other hand, to multiply by a 2-digit number, one has to multiply \(8\) and \(7\) and then add \(2\). In other words, there are two operations in this step – multiplication and addition. Therefore, the order of these two operations matters since \((7 \times 8) + 2 ≠ 7 \times (8 + 2)\). But it is quite natural for a learner to get confused on whether to multiply (by \(7\)) first and then add, or the other way. Also, unlike addition, the ‘carry’ is not usually written down. So, there are more things to keep in mind.

A similar set of steps is repeated for \(84 \times 60\), or \(84 \times 6 = 504\). This also requires ‘carry’ and since writing multiple such digits can be confusing, none are usually written. But that hardly helps a learner at the beginning.

Moreover, this is often written with a blank or ‘×’ at the unit’s place (Figure 2). Then we add up \(588\) and \(504×\). No one is taught to add 8 + × but is expected to do so here.

It is surprising how this continues in classrooms still, at least \(20-25\) years after textbooks have changed. Since we are multiplying by a multiple of \(10\), i.e., \(60\) in this case, why shouldn’t we write the partial product of \(84 \times 60\) as \(5040\)? We hope that teachers stop using the ‘×’ out of sheer inertia to change and make their pedagogy more meaningful.

Is there another way to avoid such issues? Fortunately, there is one. And it can be used for any multiplication with two whole numbers, no matter how large each is.

The standard method, illustrated above uses distributive property only once, viz.,
\(84 \times 67 = 84 \times(7 + 60) = 84 \times 7 + 84 \times 60\)
which results in the two partial products \(588\) and \(5040\) that gets added at the end.

However, we can use the distributive property twice, i.e., for both numbers and get four partial products:
\(84 \times 67 = (80 + 4) \times (60 + 7) = (80 \times 60) + (4 \times 60) + (80 \times 7) + (4 \times 7)\)

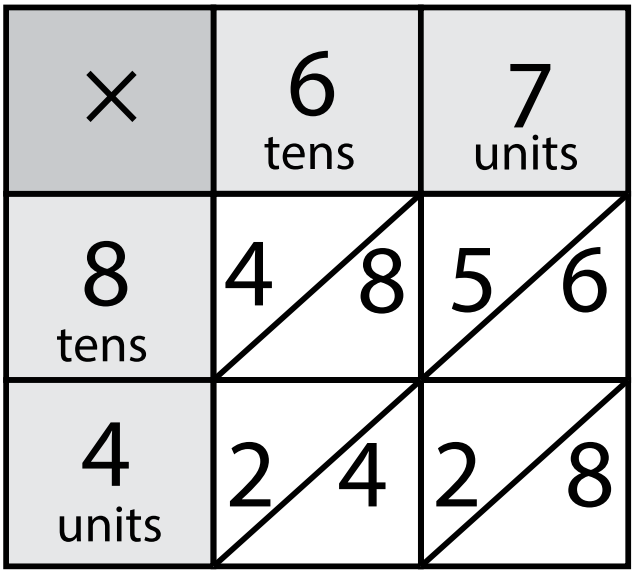

We can use a smaller lattice, e.g., Figure 5 for \(84 \times 67\). But to keep track of the zeros in the partial products (as shown in the big lattice in Figure 3), it helps to diagonalise each cell (Figure 6).

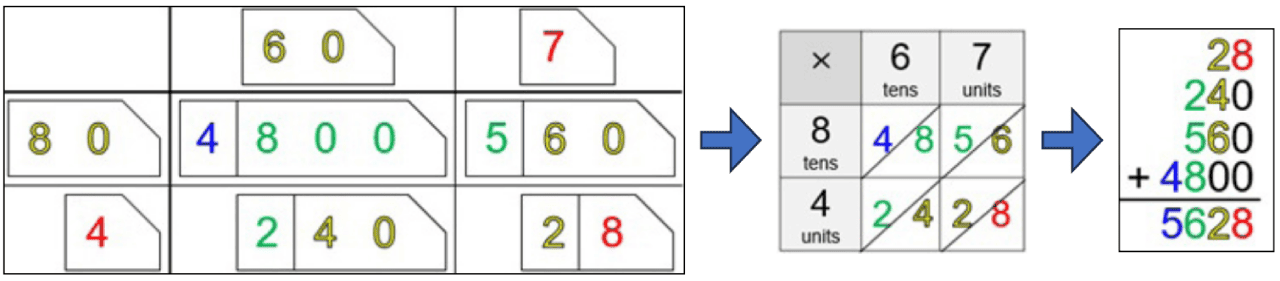

Note how the digits in each diagonal (bottom-left to top-right) correspond to the digits in the sum of partial products (right to left) as shown in Figure 7. This is explained if we use arrow cards to make the big lattice and colour the small one accordingly (Figure 8).

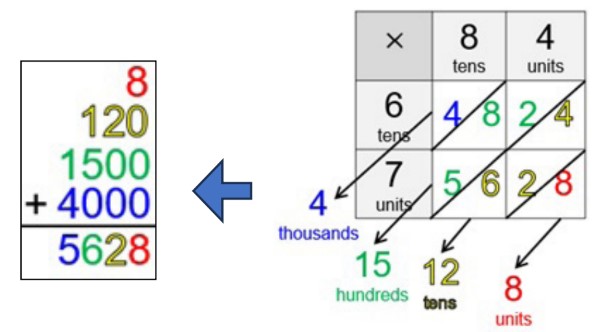

So, we could sum up diagonally as well (Figure 9).
Therefore, if we crystalize this method, it boils down to:

• Create a 2-way table with the numbers to be multiplied
• Draw diagonals in each cell
• Multiply digit-by-digit to fill each cell
• Add along each diagonal group of digits starting from the bottom-right

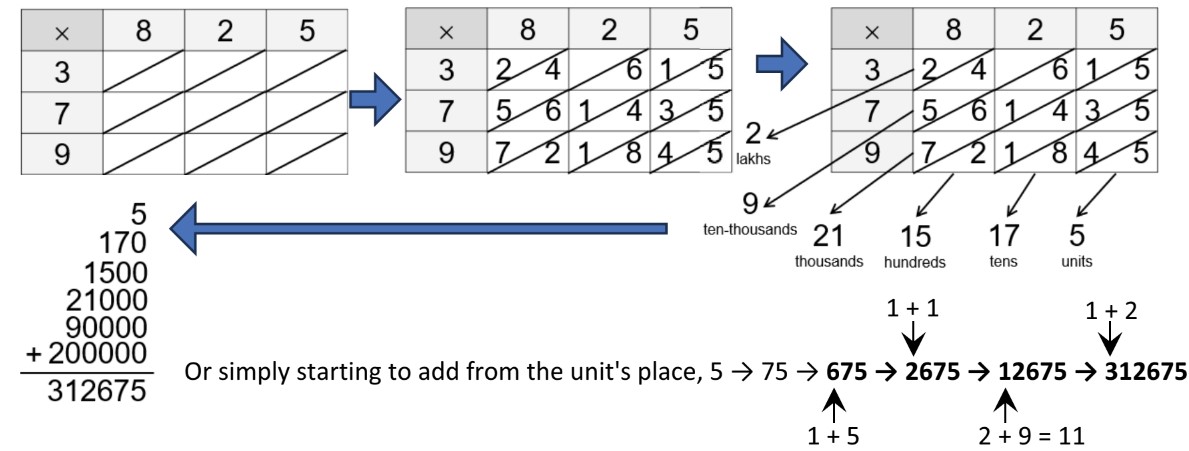

Let us illustrate this for 379 × 825:

Note that in this method, when we multiply, it is just digit-by-digit multiplication with no addition, and therefore no ‘carry’ or regrouping. And once all multiplication is done, we add up. So, this is a written process like the previous one. But without the juggling of multiplication and addition. And no chance of any “×” instead of 0 (as placeholder).

However, pedagogically speaking, one should always start with the big lattice and then transition to the small one using arrow cards. It helps a lot to start with some 2D base-10 blocks aka flats- longs-units (FLU), reviewed in the Mar 2024 issue of this magazine [3], for up to 2-digit × 2-digit products. But for bigger ones it helps to draw lines and count the number of intersections. The lines should be colour-coded to separate ones from tens, etc. Number of intersections of each type can be used to fill the 2-way table with diagonals. We illustrate this for \(379 \times 825\) (Figure 11). [Drawing intersecting line for multiplication is popularly known as lattice method.]

The need to multiply big numbers by hand has certainly reduced in real life thanks to the prevalence of technology. However, at school and therefore in board exams, learners have to multiply multi-digit numbers by hand. Various problems in percentages and mensuration may require computing such products. We hope that this method provides a simpler way to do that compared to the standard process.
